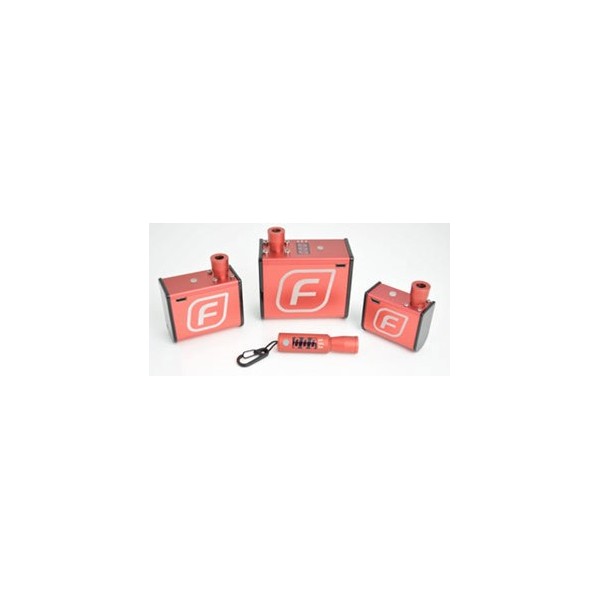

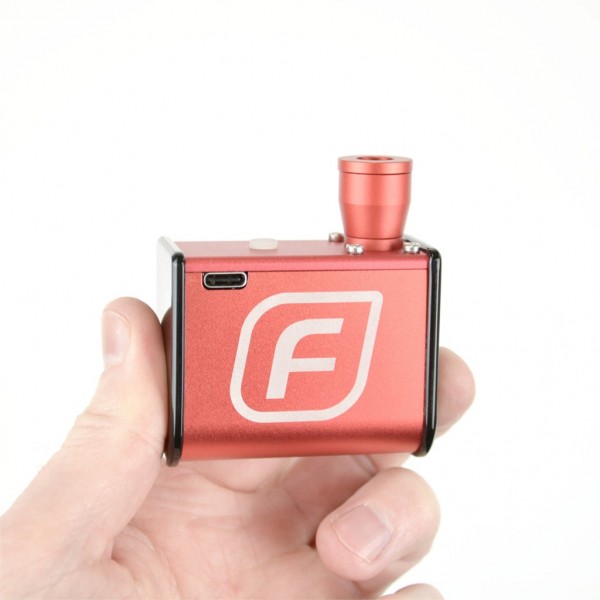

nanoFumpa is the ultimate pocket pump! It has been designed with the commuter and e-Bike user in mind. Its not as powerful as our other two pumps, but it is fantastic to take with you anytime, anywhere. nanoFumpa weighs just 100 grams, and will fit into any bag or pocket. It accepts both Presta and Schrader valves and can be fast charged in less than an hour via its USB Type-C port. Please refer to the photo below for size comparison of nanoFumpa (left) versus miniFumpa (right).

nanoFumpa is great for topping up your tyres on the go. Its maximum pressure is 80psi, so it has the power to fill any commuter bike or e-Bike tyre. For the seriously weight conscious road bike user, nanoFumpa can be an option for you but do note its 80psi pressure limit. For a 700x23c tyre, nanoFumpa will fill from 0-80psi in approximately 100 seconds. Expect to fill 1 tyre, or top up 2 tyres on a single charge.

Like our other pumps, nanoFumpa works on both Presta and Schrader valves. The nozzle comes with a small brass pin that can be easily removed for Presta valves. The pump automatically turns off after 50 seconds, and the push button flashes depending on how much battery charge is left.

Charging nanoFumpa

Charge nanoFumpa by connecting the supplied USB Type C cable to the USB Charge Port (see below). Connect the other end of the USB cable to a PC or USB wall charger (not supplied). The START/STOP button will glow red, indicating that nanoFumpa's battery is charging. The START/STOP button will cease glowing when nanoFumpa is fully charged. Using a 5V, 2Amp supply, nanoFumpa should be recharged in less than 1 hour.

PLEASE NOTE:

• Never leave your pump charging unattended!
• Do not operate the unit while it is connected to a charger. Doing so can damage the battery! Always disconnect the USB charge cable before use.
• Counterfeit wall chargers pose a fire risk and can damage your pump!
• Only charge your pump using wall chargers purchased from reputable consumer electronics stores!
• Ensure your charger is marked with at least one of these symbols:

Turning on the pump and checking battery charge

Press the ON/OFF button until motor starts to start pumping, then release. Press the button again to turn the pump off. Alternatively, the pump will automatically turn itself off after 50 seconds. Below shows approximate pump-up times of different sized road bike tyres when pumping from flat. After pumping up a tyre, rest the pump for 5-10 minutes. The pump will become warm after use. The pump is not intended to be used to continually pump up tyres.

When the motor is running, you may notice the ON/OFF button flashing. If the button glows red continuously, then the pump is fully charged. If the button flashes slowly, then the pump is between 40-95% charged, and the user should have enough charge to pump up up at least one tyre. If the button flashes fast, then nanoFumpa requires charging.

The battery charge can also be checked without turning the pump motor on. By pressing and releasing the ON/OFF button until just before the motor starts, the button will either not flash, flash slowly or flash fast, thereby indicating the battery charge. You can press the button again to turn this feature off, or it will turn itself off after 50 seconds. This feature allows the use to check the battery charge without having to turn on the pump's motor.

Approximate tyre pressures achieved by nanoFumpa after 100 seconds runtime (from 0psi)

700x23c tyre 75-80psi

700x25c tyre - 70-75psi

700x28c tyre - 60-70psi

Changing the nozzle to accept Presta Valves

nanoFumpa has been designed to accept both Presta and Schrader Valves:

When you receive your nanoFumpa the nozzle will be set up to accept Schrader valves. To accept Presta valves, unscrew the cap, remove the brass insert, flip the seal around and screw the cap back onto the nozzle:

Place the brass insert into the small zip lock bag when not in use, and keep in your carry bag:

Inflating a tyre

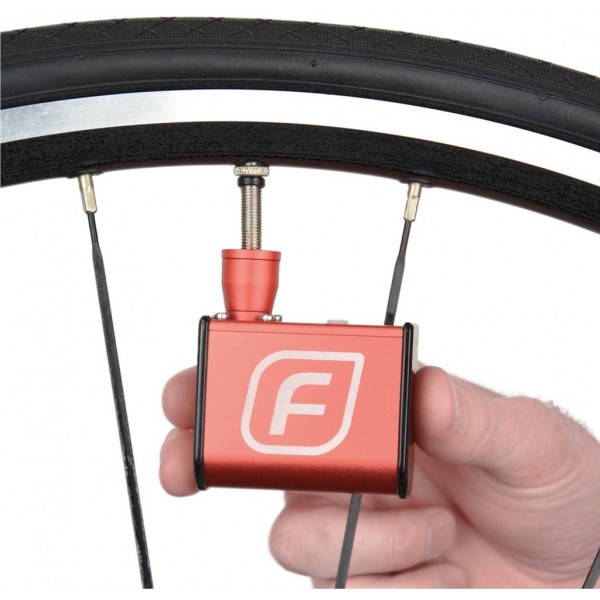

Connect nanoFumpa to a tyre by pushing nanoFumpa's nozzle onto the tyre's valve.

• Initially, the user may find that the seal inside nanoFumpa's nozzle feels tight around the valve. Over time, the seal will soften.
• Push the nozzle onto the valve nice and hard. Over time, this process will become easier.

Once connected to the tyre, inflate the tyre by pressing and holding nanoFumpa's push button until the motor starts. Once inflation starts the button can be released.

We recommend pumping your tyre by locating the tyre's valve near the top of the tyre and standing over the tyre.This method also works best for tubeless tyres as their is less chance in sealant getting into the pump.

The maximum pressure of nanoFumpa is approximately 80psi (550kPA or 5.5Bar).  However, there is no auto-off feature once this pressure is reached.  Higher pressures may be acheivalbe.

nanoFumpa automatically turns off after 50 seconds.  Alternatively, nanoFumpa can be turned off by pressing the button.

nanoFumpa can be disconnected from the tyre’s valve by firmly pulling the nozzle away from the valve.

Travelling with a Fumpa

See our recomendations and links to flight information regarding travelling with a Fumpa and its lithium battery in the downloads... Travelling with a Fumpa.

Contents:

• 1 x nanoFumpa
• 1 x USB Type C charge cable
• 1 x carry bag
• 1 x small zip lock bag

Battery
